RESEARCH AND
FUTURE DEVELOPMENT
TÜV Certified
Infinite Restraint Systems has been independently tested and verified to meet rigorous international safety, quality, and regulatory standards.
(October 21st, 2025)
TÜV Certification report available upon request

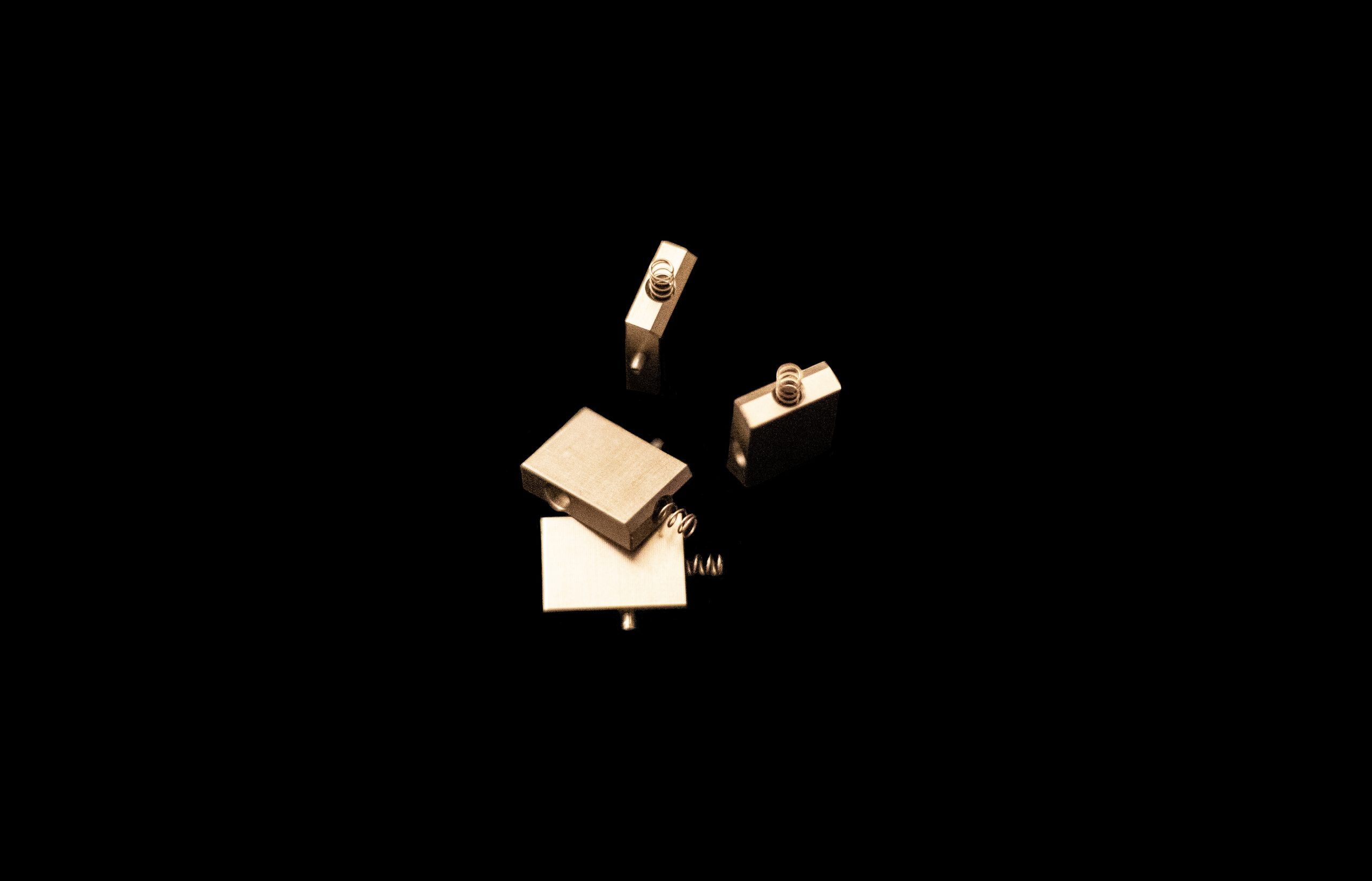

Fracture Testing
- Tests performed by Element Materials Technology
- Greater than 33,000 lb of compressive force to fail
- Greater than 5,000 lb of tensile force to fail
- Greater than 11,000 lb of tensile force to fail with fully engaged pins

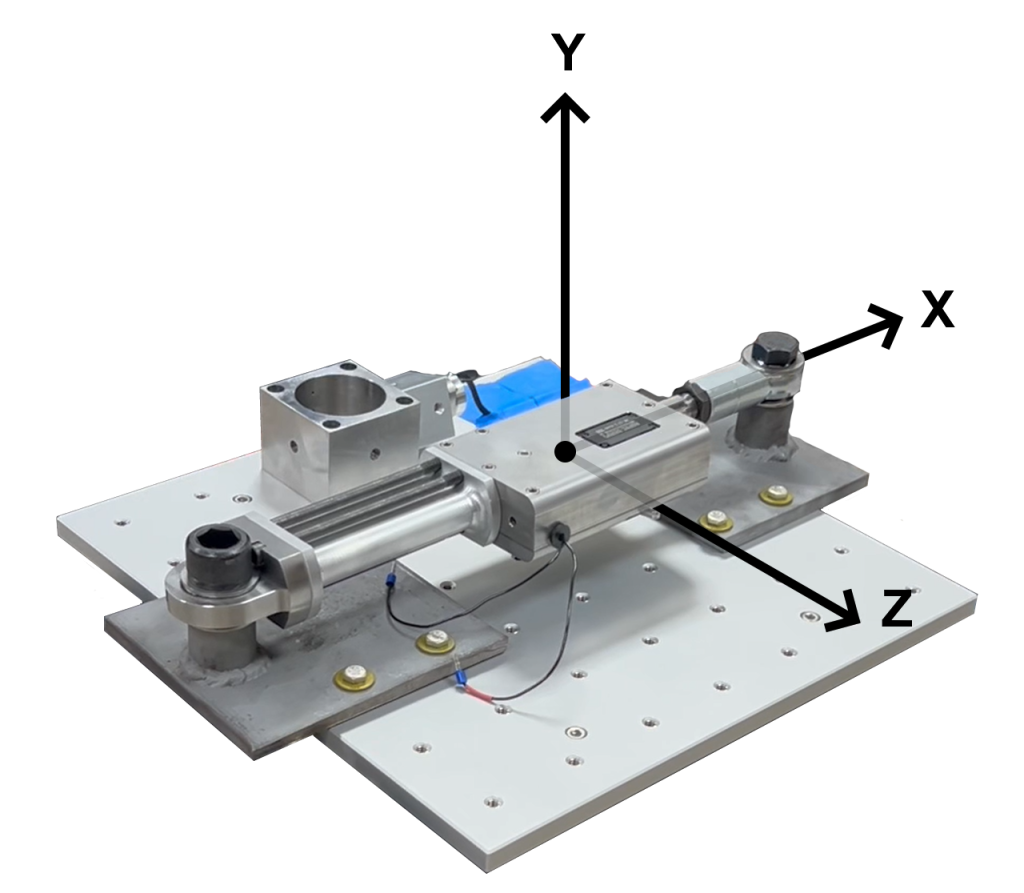

Vibration Testing
- Tests performed by Spektra Labs in accordance with International Standard IEC-60068-2.
- 3g acceleration and 10-35 Hz frequency of vibrations selected according to wooden coaster conditions.
- No slippage, no loss of engagement, and fasteners remain secure after multi-axis tests.
- Stepped frequencies and sweep endurance testing performed for range of expected values.

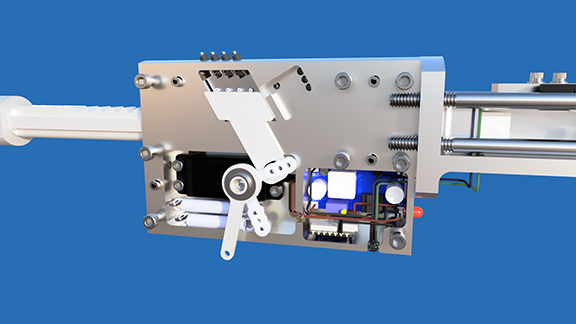

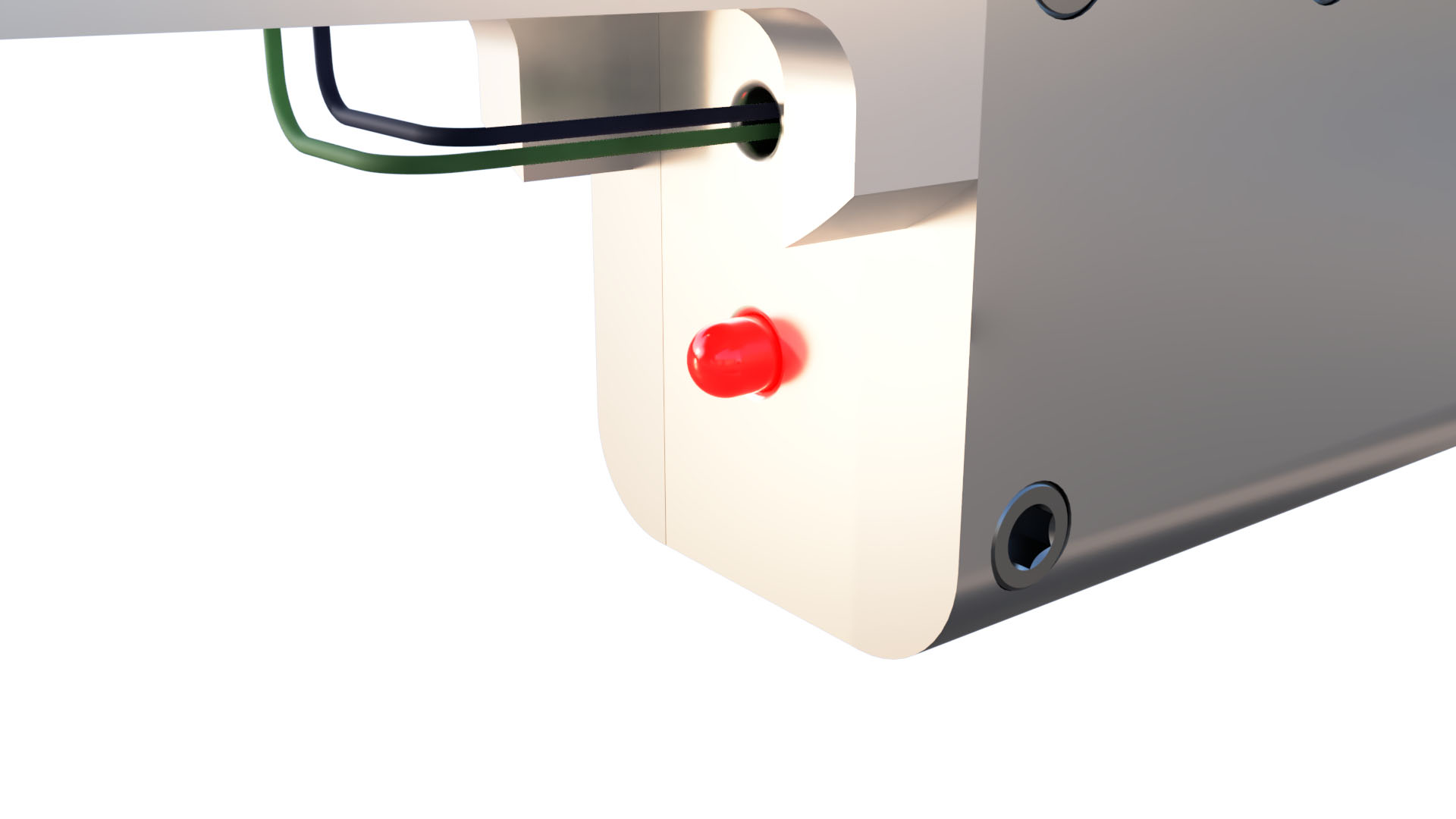

Details on our wireless model:
- Much more data and signal feedback available
- Wireless connection to every restraint visible from the control panel
- Secure address for every unit
- Directly applicable to original unit installation; able to replace wired version
Details on our assistive release attachment:
- Gas spring to help release retention device
- Stainless steel housing
- Capable of ~150 lbs assistive load
- Easily accessible for replacement
- Available for both push and pull variants
